OpenSees Concrete04 Material Test

Concrete04受压部分的包络线采用Popovics (1973) 提出的单调荷载下的应力—应变关系,并根据Karsan-Jirsa加卸载准则确定其加卸载刚度(线性);受拉部分的包络线由线性上升段和指数下降段组成,其加卸载与再加载刚度取其与原点的割线刚度。(Concrete is a uniaxial Popovics concrete material object with degraded linear unloading/reloading stiffness according to the work of Karsan-Jirsa and tensile strength with exponential decay.)

  • 材料参数(Material Parameters

fc:混凝土28天抗压强度(concrete compressive strength at 28 days );

ec:混凝土峰值强度对应的应变,即fc对应的应变(concrete strain at maximum strength);

Ec:初始刚度(initial stiffness);

fct:混凝土抗拉强度(concrete tensile strength);

et:混凝土极限拉应变(ultimate tensile strain of concrete);

beta:应变达到etu时拉应力与峰值拉应力的比值(the exponential curve patameter to define the residual stress at etu)。

  • 测试(Test

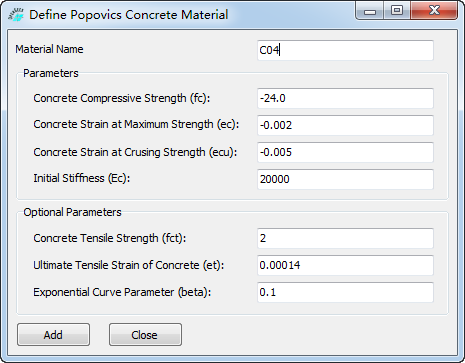

con04-material

con04-ten

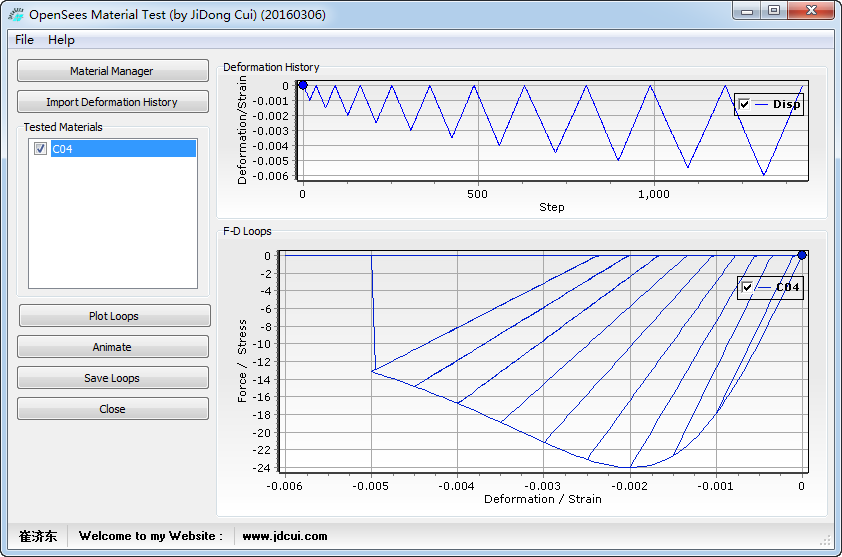

con04-comp

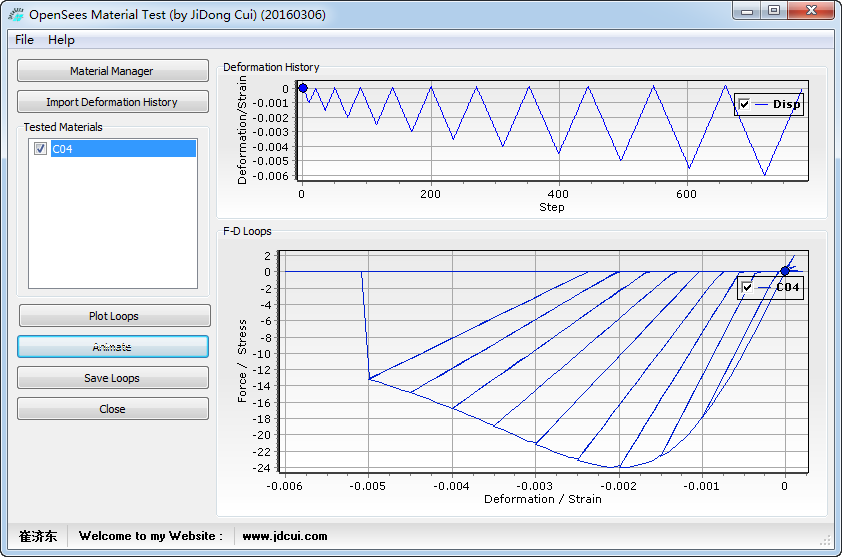

con04-comp-ten

  • 参考(References

[1] Concrete04

  • 程序下载 ( Program Download )

[Tool][软件] OpenSees Material Test [OpenSees单轴材料测试工具]

PS. 程序免费下载 ,欢迎大家给我提意见 ,敬请尊重劳动成果

  • 相关话题 ( Related Topics)

[1] OpenSees Concrete06 Material Test

[2] OpenSees ConcreteD Material Test

[3] OpenSees Concrete04 Material Test

[4] OpenSees Concrete02 Material Test

[5] OpenSees Concrete01 Material Test

[6] OpenSees RambergOsgoodSteel Material Test

[7] OpenSees Steel02 Material Test

[8] OpenSees Steel01 Material Test

  • 备注(Comments

感谢 林乐斌 师弟 帮忙整理文档。
