[PERFORM-3D][Tool] 叠合柱纤维截面工具 [Tool for Column Inelastic Fiber Section]

感谢 网友“ 沈阳-ALEC” 的建议，增加一个PERFORM-3D 叠合柱 ( Steel Tube-Reinforced Concrete Column ) 的纤维剖分工具。

同样是简单小的工具，主要是方便研究，学习软件，做软件测试用的。对于初学PERFORM-3D的同学可以看看。

 A small program to share with you.

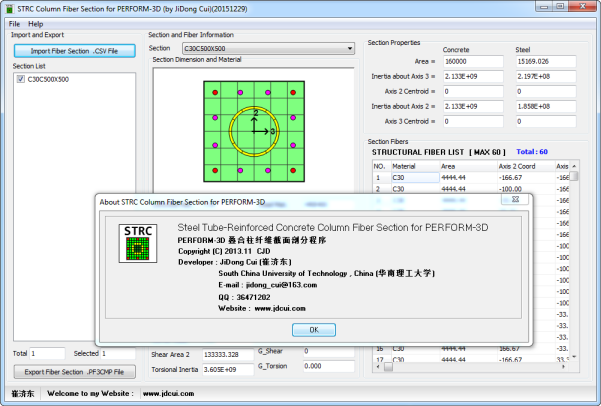

程序图标 ( Program Icon )：



• 程序介绍 ( Program Introduction)：

    针对PERFORM-3D软件的叠合柱截面剖分小工具。程序通过导入文本参数(.csv)，直接生成纤维截面的参数，并导出PERFORM-3D需要的二进制文件(.PF3CMP)。然后通过PERFORM-3D导入.PF3CMP文件完成繁琐的纤维截面输入工作，节省你的时间。

   This program is used for the data input of the “Inelastic Fiber Column Section” in PERFORM-3D. Through the import of section properties in text format (.csv), the program can generate the fiber section properties automatically. And then, the program export the binary data input file (.PF3CMP) for “Inelastic Fiber Column Section” which PERFORM-3D can then read to complete the fiber section definition. This program will definitely save you time on the input of the structural fibers.

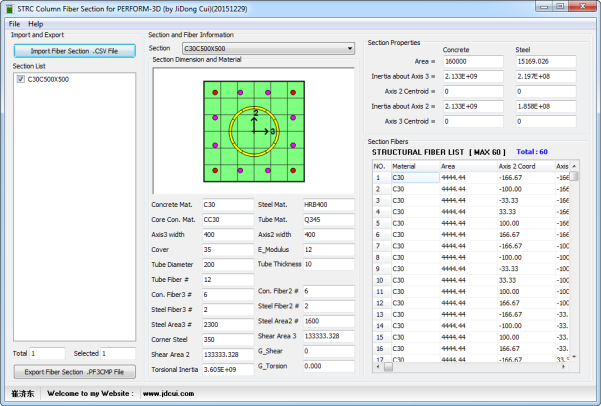

• 程序界面 ( Program Interface )

• 程序说明 ( Program Help )

 程序的使用步骤：

（1）填写纤维截面文本参数。

（2）导入参数文本文件，检查纤维截面数据。

（3）导出纤维截面二进制文件。

（4）打开PERFORM-3D，导入二进制文件，完成纤维截面定义。

The overall steps are as follows.

(1) Prepare section properties in text format.

(2) Import the text file and check the fiber section properties generated by the program.

(3) Export the binary data input file (.PF3CMP) for “Inelastic Fiber Shear Wall Section”.

(4) Open PERFORM-3D and import the binary data input file to complete the definition of the fiber section properties .

• 程序下载 ( Program Download )

非免费程序，若需购买，联系E-mail: jidong_cui@163.com 或 微信:Jidong_cui

If you want to buy this program, contact me via E-mail: jidong_cui@163.com or Wechat: Jidong_cui.

• 注释 ( Comments )

  ( 如果你发现软件有bug或者软件使用有问题，请联系我！邮箱：jidong_cui@163.com)

  (  If  you have found any bug in the program or have any problem when using the program, please don’t hesitate to contact me directly.  Email : jidong_cui@163.com)
