[Abaqus][笔记] Abaqus中单元应力云图平滑参数设置

实干、实践、积累、思考、创新。

---

默认情况下，Abaqus中的单元应力云图再节点上是有平均处理过的。

有个Averaging threshold参数控制节点应力的平均处理程度，默认是75%，也就是原图图例中显示的 avg=75%。

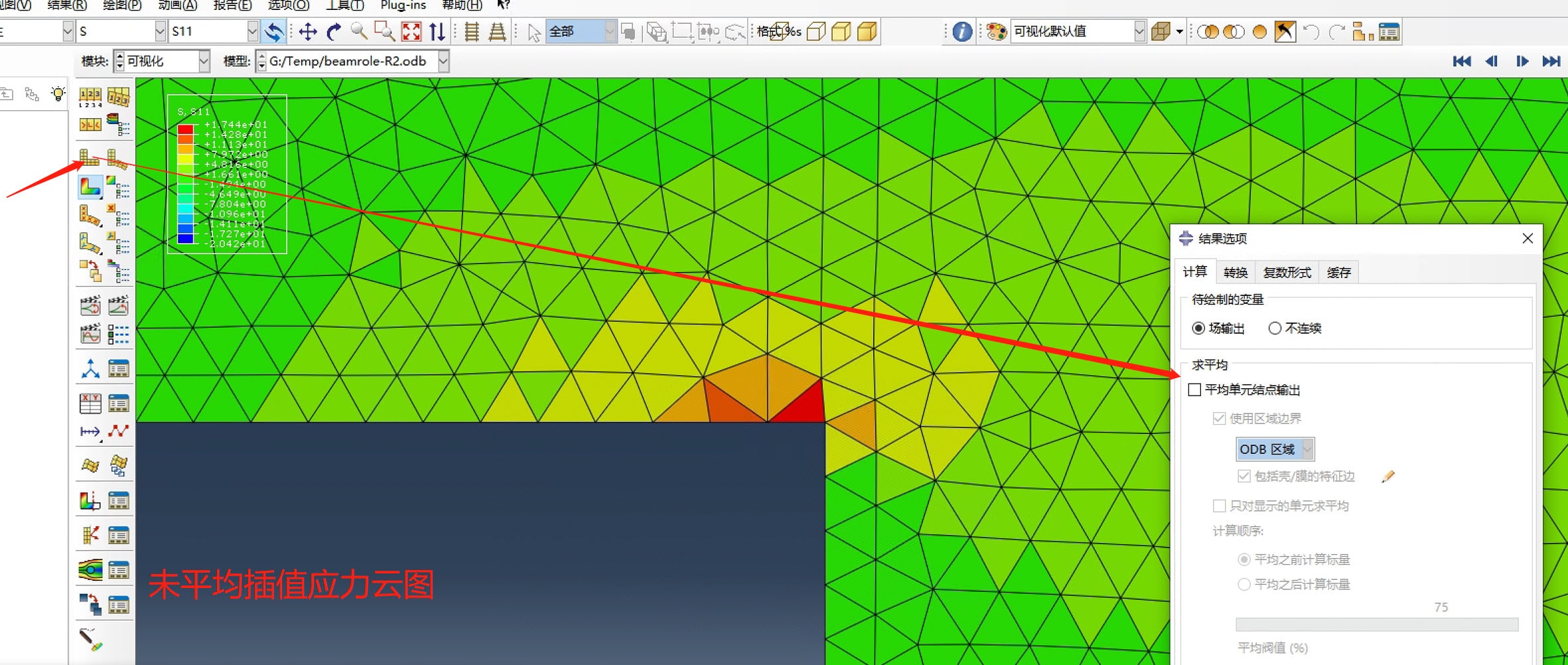

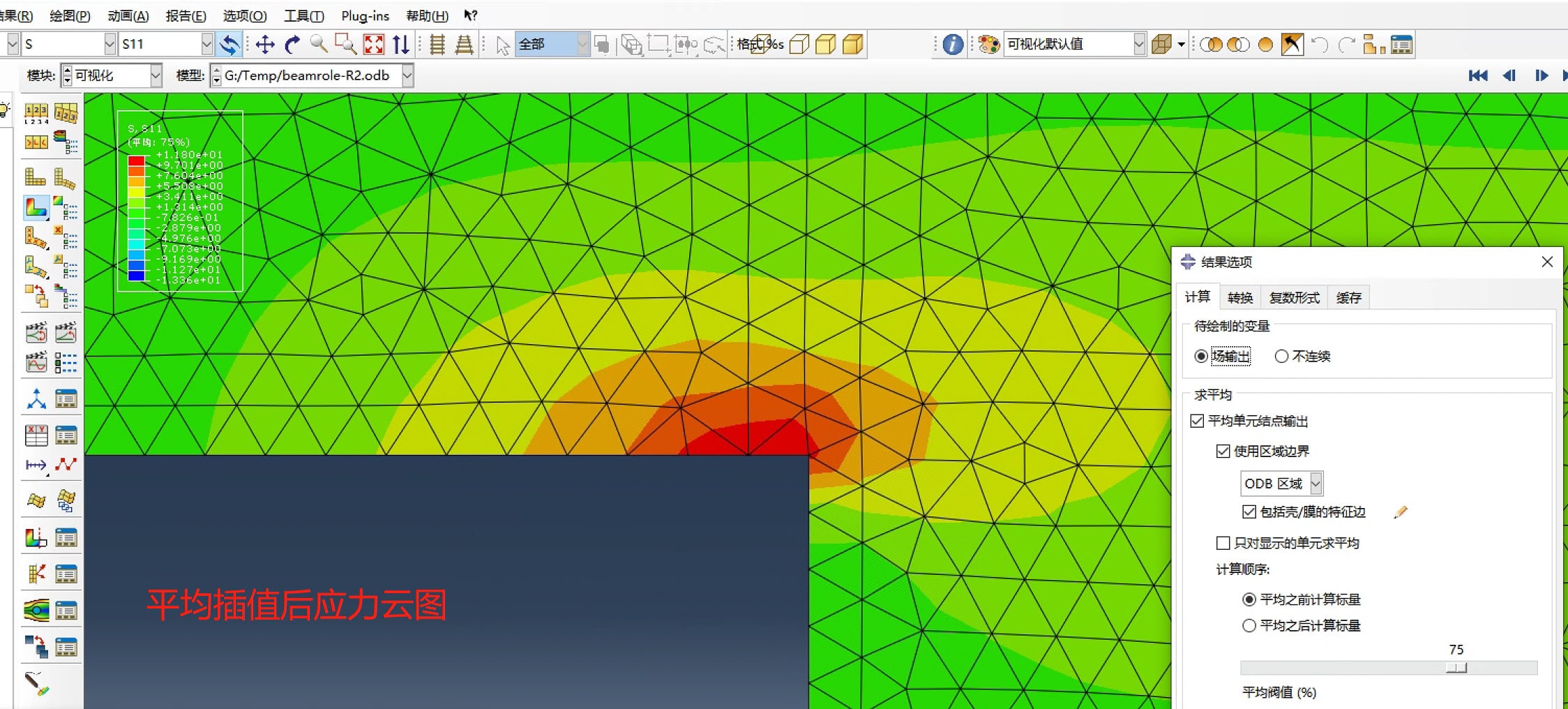

有时候我们调试一些模型，需要查看平滑之前的应力结果时，就需要取消应力平滑。以下两个图记录具体参数的设置位置。

---
