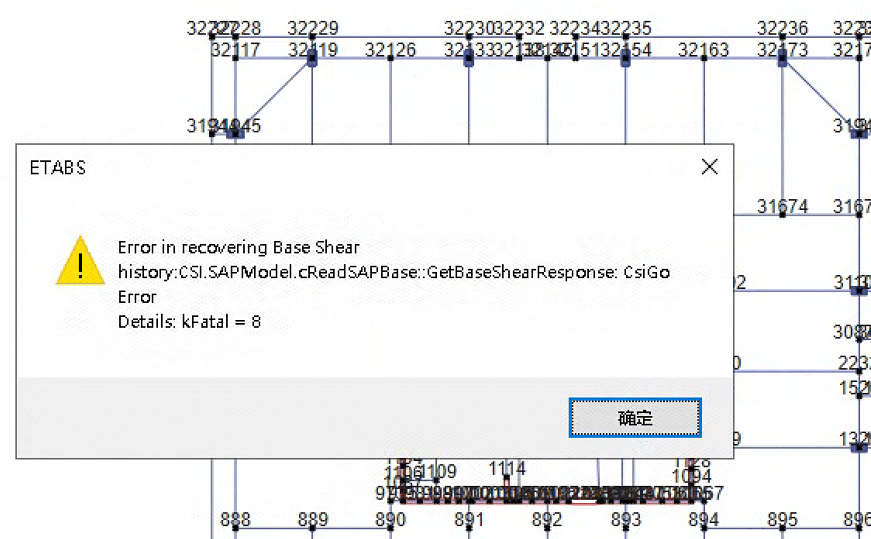

最近研究用ETABS进行风时程动力时程响应分析，再测试算例时候发现，算完弹性时程分析后，点击绘制曲线，弹出如下错误。
Error in recovering Base Shear
history:CSlSAPModelcReadSAPBase::GetBaseShearResponse: CsiGo
ErrorDetails: kFatal = 8
基底剪力数据无法提取，基底剪力时程曲线也无法绘制，但是计算结果已经算完了。同时其他结果都能正确提取出来。
后经过检查，发现是ETABS的BUG，当风荷载采用施加到刚性隔板点的方式是施加时，当施加的楼层过多，计算完后就会出现上述无法提取剪力结果的错误。
于是没办法，只能将风荷载改为施加到指定节点上的方式，结果就正常了。但是施加到指定节点上，明显工作量比直接按楼层刚性隔板施加荷载的方式要复杂很多，而且没办法直接指定施加到刚性隔板点。
[做个简单记录，也许后续还会遇到，或者其他人遇到！]- 相关博文 ( Related Topics)
